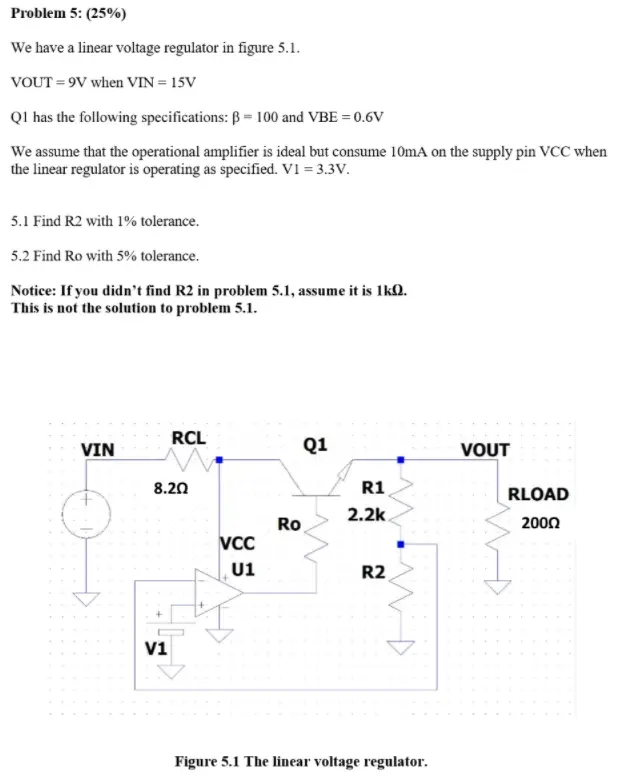

Problem 5: (25%) We have a linear voltage regulator in figure 5.1. VOUT=9V when VIN = 15V Q1 has the following specifications: B = 100 and VBE = 0.6V We assume that the operational amplifier is ideal but consume 10mA on the supply pin VCC when the linear regulator is operating as specified. V1 = 3.3V. 5.1 Find R2 with 1% tolerance. 5.2 Find Ro with 5% tolerance. Notice: If you didn't find R2 in problem 5.1, assume it is 1kQ. This is not the solution to problem 5.1. RCL VIN Q1 8.20 V1 Ro VCC U1 VOUT ཋ R1 2.2k R2 WD Figure 5.1 The linear voltage regulator. RLOAD 2000
