السؤال

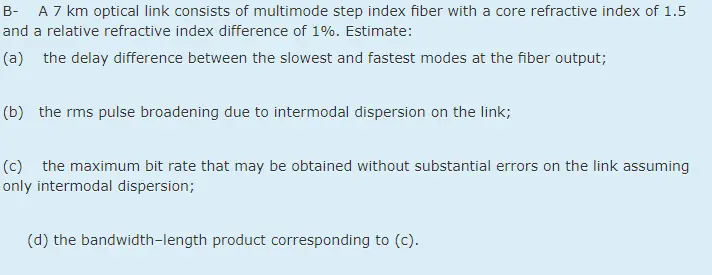

Transcribed Image Text:
B-
A 7 km optical link consists of multimode step index fiber with a core refractive index of 1.5
and a relative refractive index difference of 1%. Estimate:
(a) the delay difference between the slowest and fastest modes at the fiber output;
(b) the rms pulse broadening due to intermodal dispersion on the link;
(c) the maximum bit rate that may be obtained without substantial errors on the link assuming
only intermodal dispersion;
(d) the bandwidth-length product corresponding to (c).
