السؤال
Transcribed Image Text:

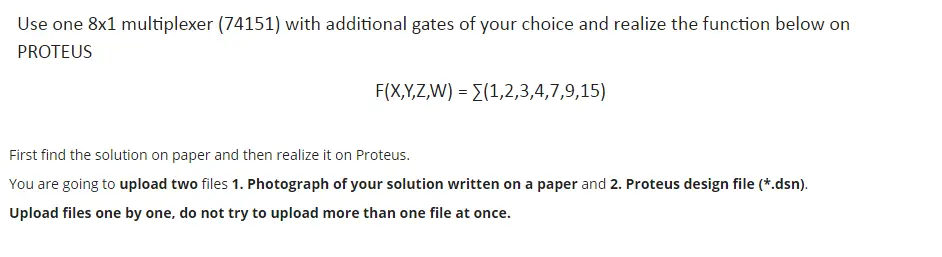

Use one 8x1 multiplexer (74151) with additional gates of your choice and realize the function below on
PROTEUS
F(X,Y,Z,W)=(1,2,3,4,7,9,15)
First find the solution on paper and then realize it on Proteus.
You are going to upload two files 1. Photograph of your solution written on a paper and 2. Proteus design file (*.dsn).
Upload files one by one, do not try to upload more than one file at once.
