السؤال

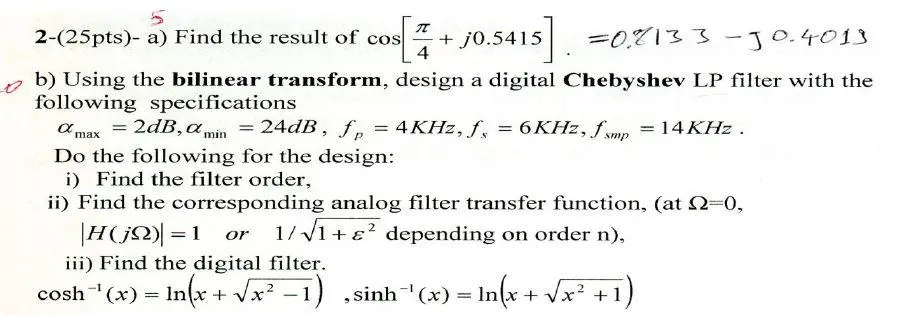

Transcribed Image Text:
2-(25pts)- a) Find the result of cos
π
+ j0.5415
5415] -=0.7133-50.4013
4
b) Using the bilinear transform, design a digital Chebyshev LP filter with the
following specifications
amax = 2dB, amin = 24dB, fp
= 4KHz, fs
=
6KHz, fsmp = 14KHz.
Do the following for the design:
i) Find the filter order,
ii) Find the corresponding analog filter transfer function, (at 2=0,
|H(j)=1 or 1/√√1+2 depending on order n),
iii) Find the digital filter.
cosh(x) = ln(x + √√x²-1),sinh '(x) = ln(x + √√x² + 1)
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
