السؤال
Transcribed Image Text:

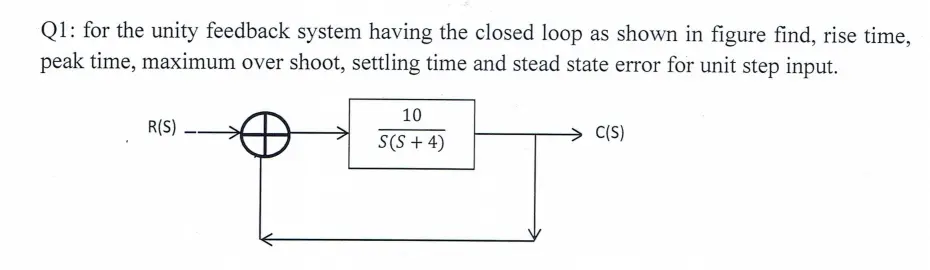

Q1: for the unity feedback system having the closed loop as shown in figure find, rise time,
peak time, maximum over shoot, settling time and stead state error for unit step input.
R(S)
10
S(S+4)
C(S)
