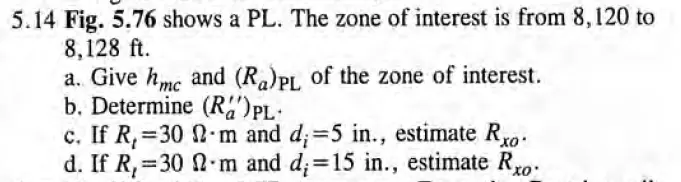

5.14 Fig. 5.76 shows a PL. The zone of interest is from 8,120 to 8,128 ft. a. Give hmc and (Ra) PL of the zone of interest. b. Determine (R)PL c. If R, 30 d. If R, 30 -m and d;=5 in., estimate Rxo m and d;=15 in., estimate Rxo 6 Caliper 16 10 Бро 8200 100 PROXIMITY LOGI Low > high porosity Nvariation porosity. due to Hood TD = 8220 ft BHT = 140°F R mc = 1.0 ohm.m: @140°F Fig. 5.76-PL for Problem 5.14 (courtesy Schlumberger).
