السؤال
Transcribed Image Text:

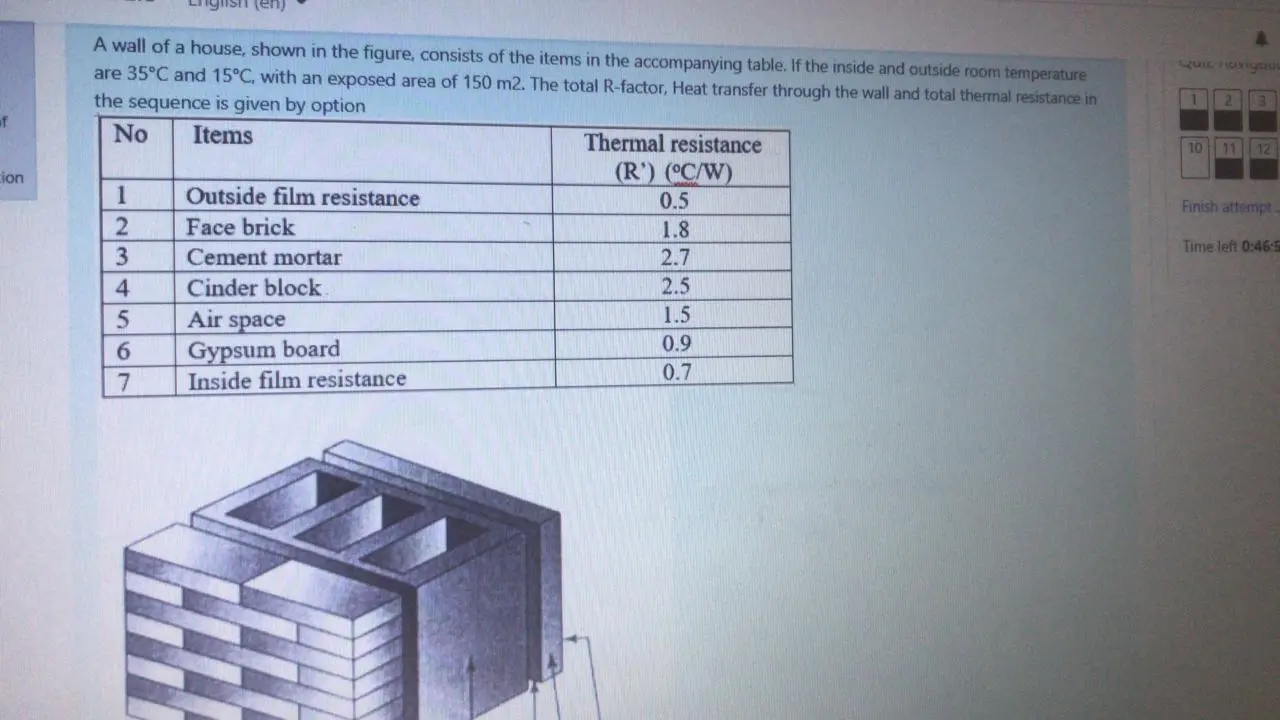

A wall of a house, shown in the figure, consists of the items in the accompanying table. If the inside and outside room temperature
are 35°C and 15°C, with an exposed area of 150 m2. The total R-factor, Heat transfer through the wall and total thermal resistance in
the sequence is given by option
que rovigoiue
f
No
Items
Thermal resistance
Cion
(R') (°C/W)
1
Outside film resistance
0.5
2
Face brick
1.8.
3
Cement mortar
2.7
4
Cinder block.
2.5
5
Air space
1.5
6
Gypsum board
0.9
7
Inside film resistance
0.7
875597
10
11 12
Finish attempt
Time left 0:46:5
