السؤال
Transcribed Image Text:

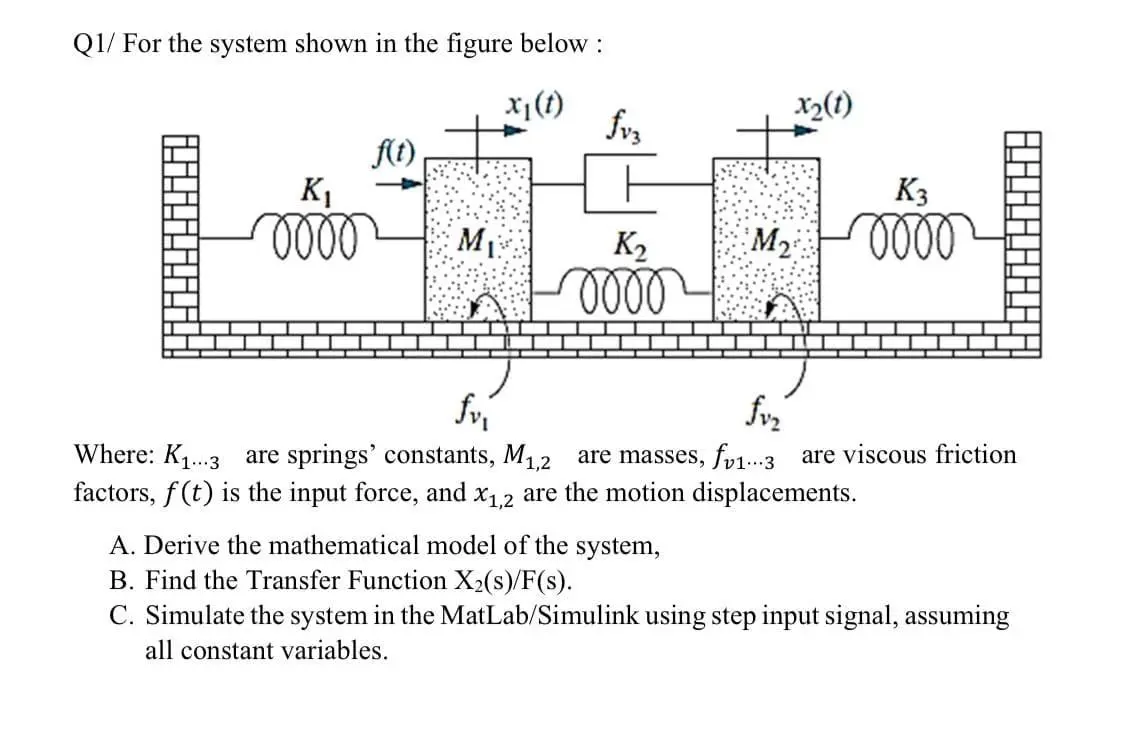

Q1/ For the system shown in the figure below:
x₁(t)
X2(1)
fv3
f(t)
K₁
K3
0000
Mi
K₂
M2
0000
0000
fv₂
fv₁
Where: K1...3 are springs' constants, M₁1,2 are masses, fv1...3 are viscous friction
factors, f(t) is the input force, and x1,2 are the motion displacements.
A. Derive the mathematical model of the system,
B. Find the Transfer Function X2(s)/F(s).
C. Simulate the system in the MatLab/Simulink using step input signal, assuming
all constant variables.
check_circle الجواب — حل مفصل خطوة بخطوة
