السؤال
Transcribed Image Text:
QUESTION 2

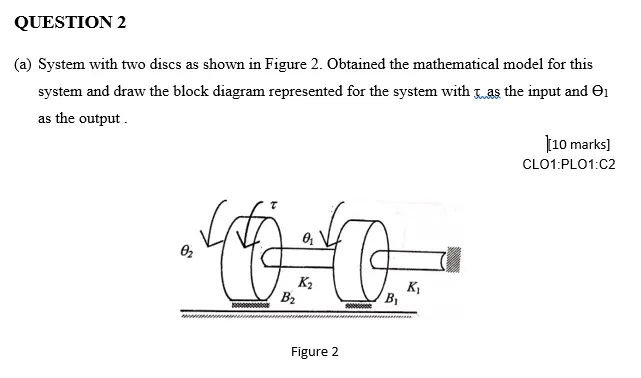

(a) System with two discs as shown in Figure 2. Obtained the mathematical model for this
system and draw the block diagram represented for the system with as the input and Oi
as the output.
[10 marks]
CLO1:PLO1:C2
Q
K₂
B₂
K₁
B₁
Figure 2
