السؤال
Transcribed Image Text:

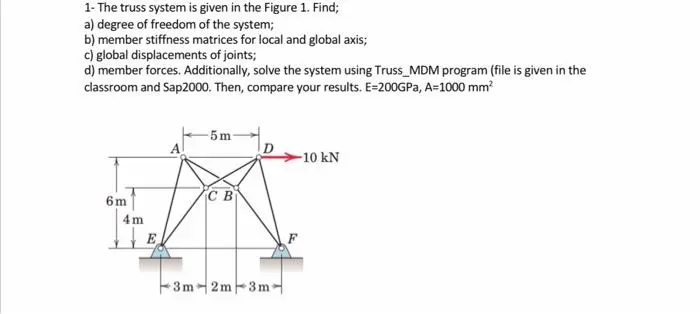

1- The truss system is given in the Figure 1. Find;
a) degree of freedom of the system;
b) member stiffness matrices for local and global axis;
c) global displacements of joints;
d) member forces. Additionally, solve the system using Truss MDM program (file is given in the
classroom and Sap2000. Then, compare your results. E-200GPa, A-1000 mm²
6m.
4 m
E
5m
-10 kN
CB
3m 2m 3m
