السؤال

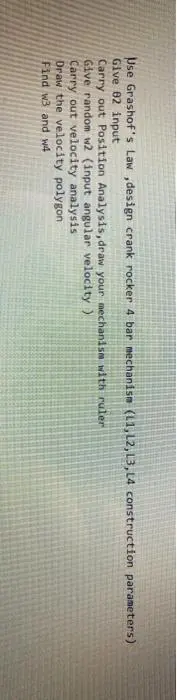

Transcribed Image Text:
Use Grashof's Law,design crank rocker 4 bar mechanism (L1, L2, L3, L4 construction parameters)
Give 82 input
Carry out Position Analysis, draw your mechanism with ruler
Give random w2 (input angular velocity)
Carry out velocity analysis
Draw the velocity polygon
Find w3 and w4
