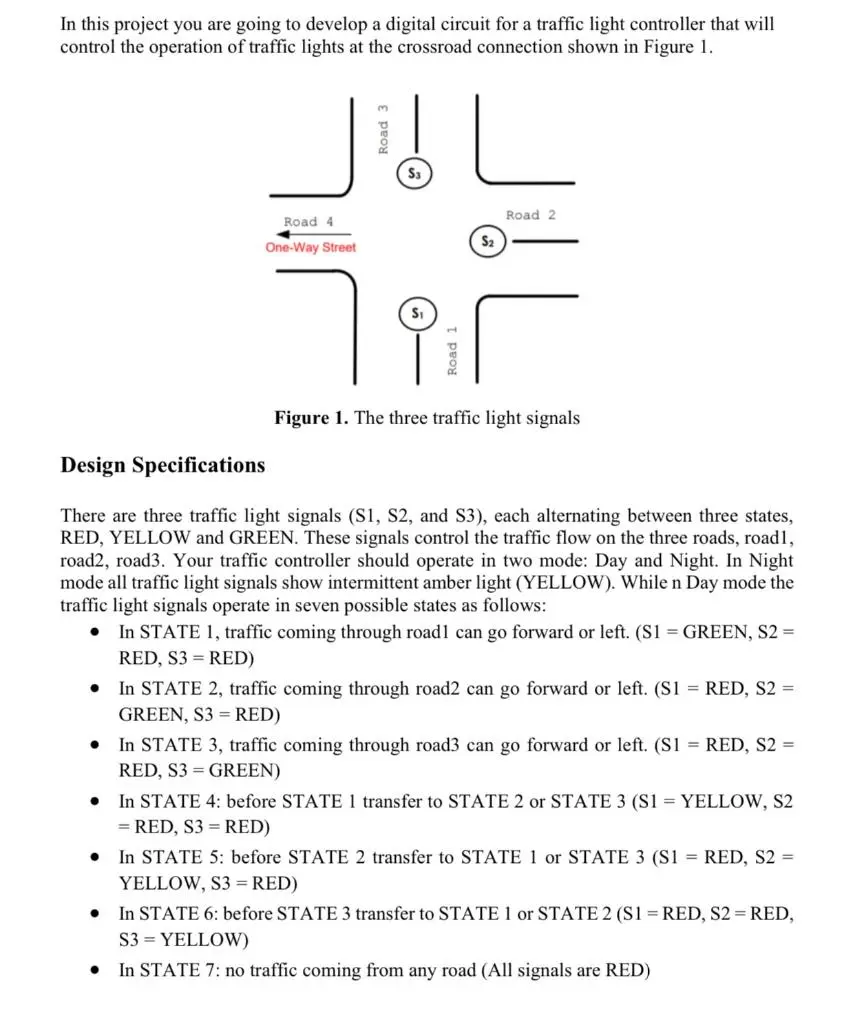

In this project you are going to develop a digital circuit for a traffic light controller that will control the operation of traffic lights at the crossroad connection shown in Figure 1. Road 4. One-Way Street S3 Road 2 Design Specifications ך ii Figure 1. The three traffic light signals There are three traffic light signals (S1, S2, and S3), each alternating between three states, RED, YELLOW and GREEN. These signals control the traffic flow on the three roads, road, road2, road3. Your traffic controller should operate in two mode: Day and Night. In Night mode all traffic light signals show intermittent amber light (YELLOW). While n Day mode the traffic light signals operate in seven possible states as follows: • In STATE 1, traffic coming through road can go forward or left. (S1 = GREEN, S2 = RED, S3 RED) • • . • In STATE 2, traffic coming through road2 can go forward or left. (S1 = RED, S2 = GREEN, S3 RED) In STATE 3, traffic coming through road3 can go forward or left. (S1 = RED, S2 = RED, S3 GREEN) In STATE 4: before STATE 1 transfer to STATE 2 or STATE 3 (S1 = YELLOW, S2 =RED, S3 RED) In STATE 5: before STATE 2 transfer to STATE 1 or STATE 3 (S1 = RED, S2 = YELLOW, S3 = RED) In STATE 6: before STATE 3 transfer to STATE 1 or STATE 2 (S1 RED, S2 = RED, YELLOW) S3 In STATE 7: no traffic coming from any road (All signals are RED) The operation of the three light signals (S1-S3) is controlled through an arrangement of traffic sensors and traffic light controller circuit. There are three traffic sensors X1, X2 & X3, which sense the presence of traffic on the roads 1-3 as illustrated in Table 1. The controller operation is determined by the output of these three sensors as enumerated in Table 1. Table 1. Traffic Sensors and Controller Operation X3 X2 Traffic case Controller operation X1 000 All roads have no traffic Stay at STATE 7 001 Only Road 1 has traffic Stay at STATE 1 010 Only Road 2 has traffic 011 100 101 110 Road2 and Road3 have traffic 111 All roads have traffic. Road and Road2 have traffic Only Road3 has traffic Road and Road3 have traffic Stay at STATE 2 Alternate between STATE 1, STATE 4, STATE 2, STATE 5, STATE 1.... Stay at STATE 3 Alternate between STATE 1, STATE 4, STATE 3, STATE 6, STATE 1.... Alternate between STATE 2, STATE 5, STATE 3, STATE 6, STATE 2... Normal operation: STATE 1, STATE 4, STATE 2, STATE 5, STATE 3, STATE 6, STATE 1.... Note: • When you alternate between states. The traffic light will be GREEN for 10sec, YELLOW of 3sec and RED for 10sec • • You are not allowed to use any predefine components Make sure to display the count value (you may use 7seg display or Hex display)
