السؤال

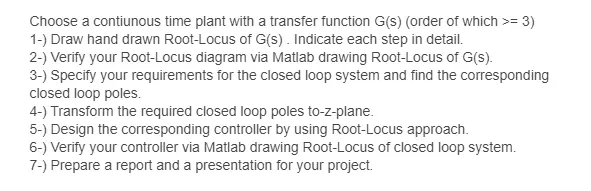

Transcribed Image Text:
Choose a contiunous time plant with a transfer function G(s) (order of which >= 3)
1-) Draw hand drawn Root-Locus of G(s). Indicate each step in detail.
2-) Verify your Root-Locus diagram via Matlab drawing Root-Locus of G(s).
3-) Specify your requirements for the closed loop system and find the corresponding
closed loop poles.
4-) Transform the required closed loop poles to-z-plane.
5-) Design the corresponding controller by using Root-Locus approach.
6-) Verify your controller via Matlab drawing Root-Locus of closed loop system.
7-) Prepare a report and a presentation for your project.
