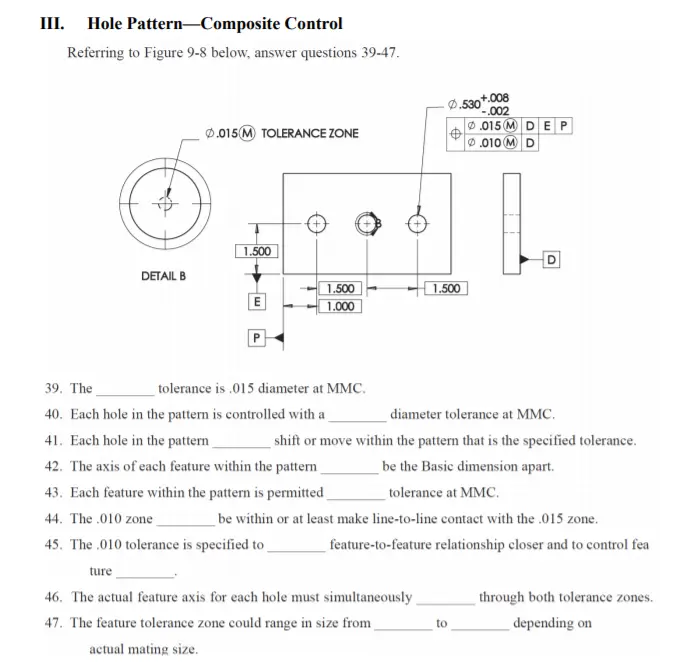

III. Hole Pattern-Composite Control Referring to Figure 9-8 below, answer questions 39-47. 0.015 M TOLERANCE ZONE 530 +.008 -.002 0.015 M DEP 0.010 MD 1.500 DETAIL B E 1.500 1.000 1.500 P 39. The tolerance is .015 diameter at MMC. 40. Each hole in the pattern is controlled with a 41. Each hole in the pattern diameter tolerance at MMC. shift or move within the pattern that is the specified tolerance. be the Basic dimension apart. tolerance at MMC. 42. The axis of each feature within the pattern_ 43. Each feature within the pattern is permitted 44. The .010 zone be within or at least make line-to-line contact with the .015 zone. feature-to-feature relationship closer and to control fea 45. The .010 tolerance is specified to ture 46. The actual feature axis for each hole must simultaneously 47. The feature tolerance zone could range in size from actual mating size. to through both tolerance zones. depending on
