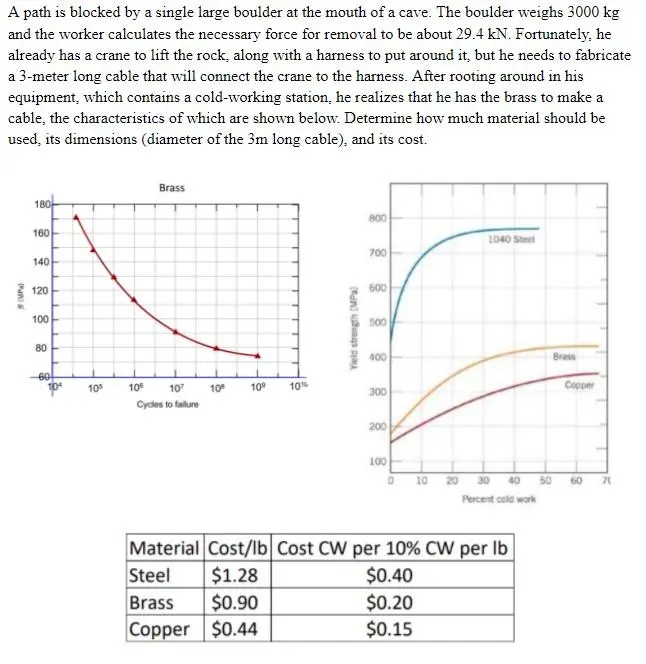

A path is blocked by a single large boulder at the mouth of a cave. The boulder weighs 3000 kg and the worker calculates the necessary force for removal to be about 29.4 kN. Fortunately, he already has a crane to lift the rock, along with a harness to put around it, but he needs to fabricate a 3-meter long cable that will connect the crane to the harness. After rooting around in his equipment, which contains a cold-working station, he realizes that he has the brass to make a cable, the characteristics of which are shown below. Determine how much material should be used, its dimensions (diameter of the 3m long cable), and its cost. SMP) 180 160 140 28% 120 100 80 10 10° 10% Brass 10° Cycles to failure 10° 10° 10% Yield strength (MPa) 800 1040 Steel 700 600 500 400 80 300 200 Brass Copper 100 20 30 40 50 Percent cold work 60 Material Cost/lb Cost CW per 10% CW per lb Steel $1.28 $0.40 Brass $0.90 $0.20 Copper $0.44 $0.15
