السؤال
Transcribed Image Text:

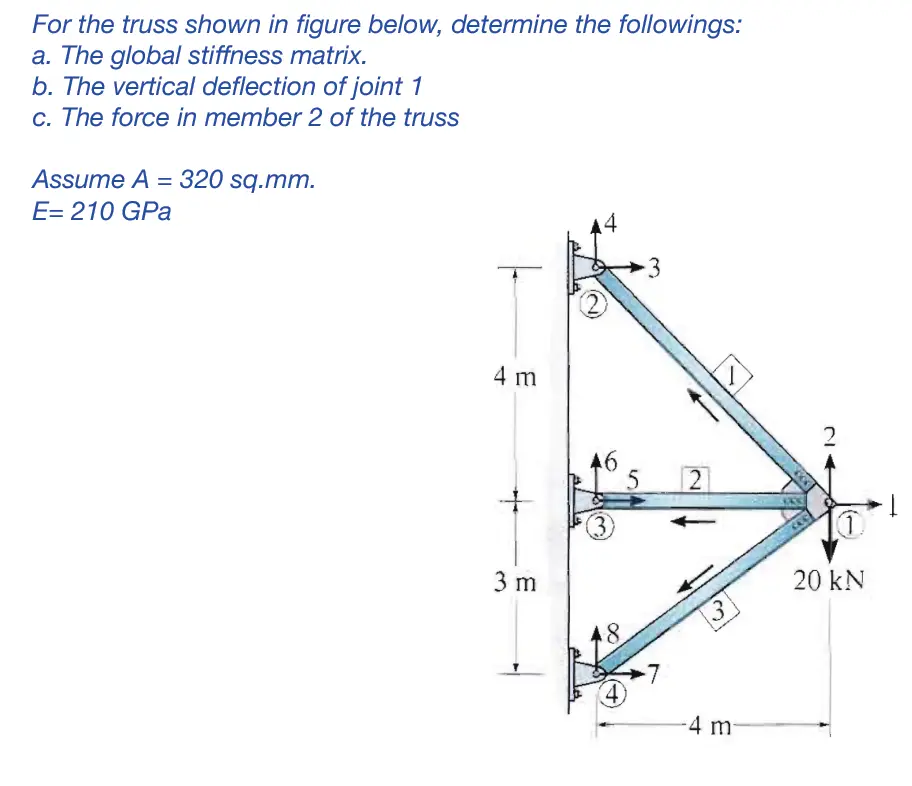

For the truss shown in figure below, determine the followings:
a. The global stiffness matrix.
b. The vertical deflection of joint 1
c. The force in member 2 of the truss
Assume A = 320 sq.mm.
E= 210 GPa
4
4 m
(2)
2
6
5
2
+
(3)
3 m
3
1
20 kN
4
-4 m
