السؤال

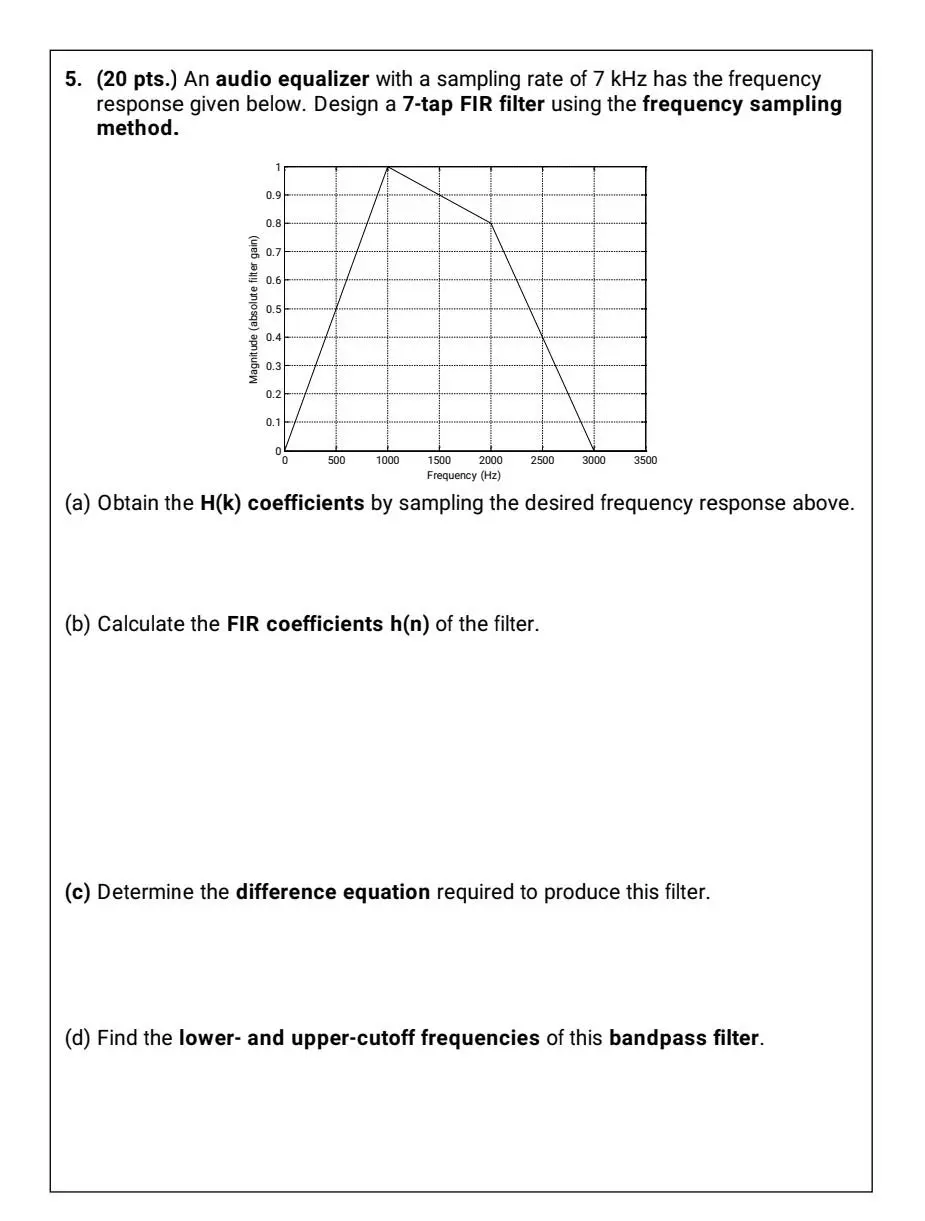

Transcribed Image Text:
5. (20 pts.) An audio equalizer with a sampling rate of 7 kHz has the frequency
response given below. Design a 7-tap FIR filter using the frequency sampling
method.
Magnitude (absolute filter gain)
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
500
1000
1500
2000
2500
3000
3500
Frequency (Hz)
(a) Obtain the H(k) coefficients by sampling the desired frequency response above.
(b) Calculate the FIR coefficients h(n) of the filter.
(c) Determine the difference equation required to produce this filter.
(d) Find the lower- and upper-cutoff frequencies of this bandpass filter.
