السؤال

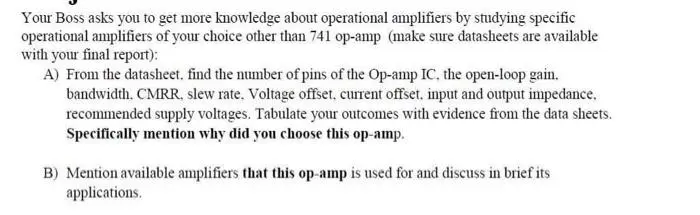

Transcribed Image Text:
Your Boss asks you to get more knowledge about operational amplifiers by studying specific
operational amplifiers of your choice other than 741 op-amp (make sure datasheets are available
with your final report):
A) From the datasheet, find the number of pins of the Op-amp IC, the open-loop gain.
bandwidth. CMRR, slew rate. Voltage offset, current offset. input and output impedance.
recommended supply voltages. Tabulate your outcomes with evidence from the data sheets.
Specifically mention why did you choose this op-amp.
B) Mention available amplifiers that this op-amp is used for and discuss in brief its
applications.
