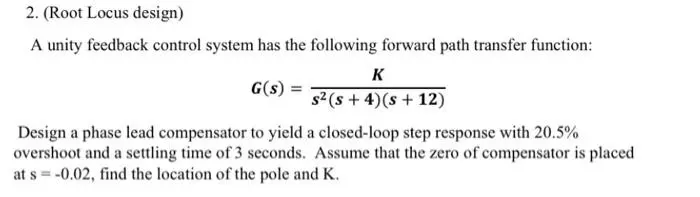

2. (Root Locus design)
A unity feedback control system has the following forward path transfer function:
G(S)
K
s² (s + 4)(s +12)
Design a phase lead compensator to yield a closed-loop step response with 20.5%
overshoot and a settling time of 3 seconds. Assume that the zero of compensator is placed
at s=-0.02, find the location of the pole and K.
