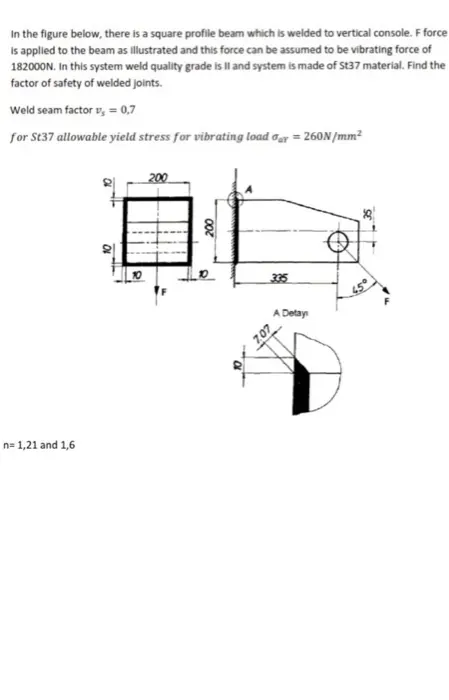

In the figure below, there is a square profile beam which is welded to vertical console. F force is applied to the beam as illustrated and this force can be assumed to be vibrating force of 182000N. In this system weld quality grade is II and system is made of St37 material. Find the factor of safety of welded joints. Weld seam factor = 0,7 for St37 allowable yield stress for vibrating load or = 260N/mm² n= 1,21 and 1,6 & 200 7.07 335 A Detay
