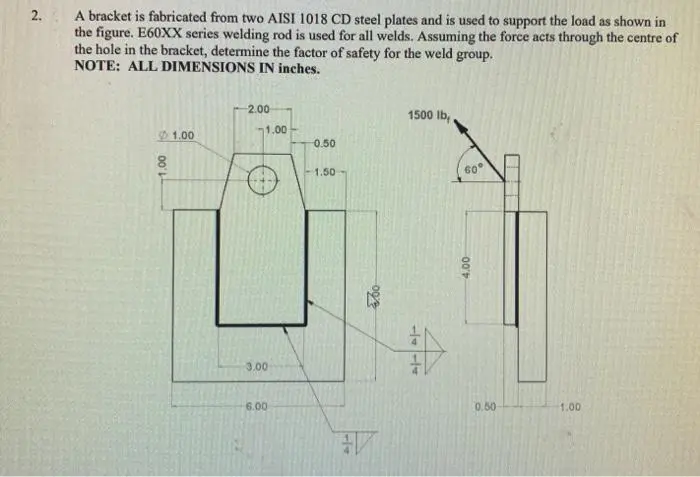

2. A bracket is fabricated from two AISI 1018 CD steel plates and is used to support the load as shown in the figure. E60XX series welding rod is used for all welds. Assuming the force acts through the centre of the hole in the bracket, determine the factor of safety for the weld group. NOTE: ALL DIMENSIONS IN inches. .00 3.00 6.00 1.00 2.00 1500 lb, 1.00 0.50 -1.50 1414 60- 4.00 60° 0.50 1.00
