السؤال
Transcribed Image Text:

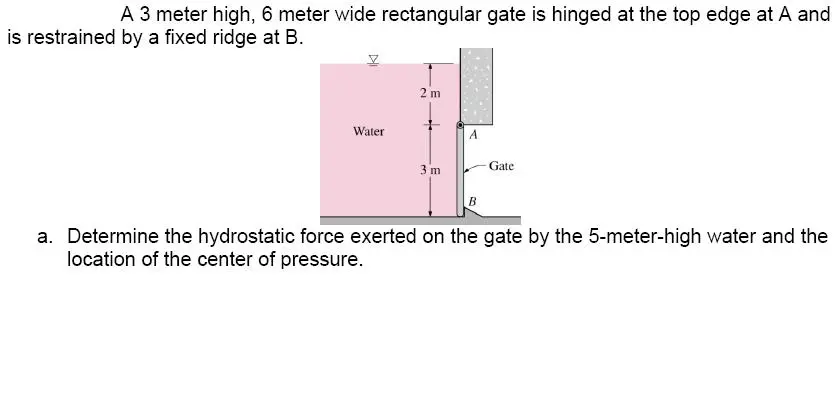

A 3 meter high, 6 meter wide rectangular gate is hinged at the top edge at A and
is restrained by a fixed ridge at B.
Water
2 m
A
Gate
3 m
B
a. Determine the hydrostatic force exerted on the gate by the 5-meter-high water and the
location of the center of pressure.
