السؤال

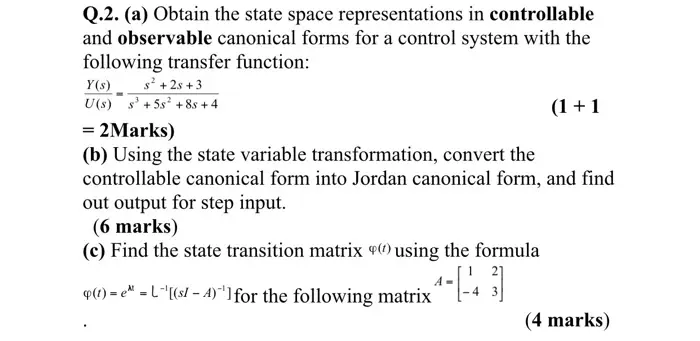

Transcribed Image Text:
Q.2. (a) Obtain the state space representations in controllable
and observable canonical forms for a control system with the
following transfer function:
Y(s) s²+2s+3
U(s) s³ +5s² +8s +4
= 2Marks)
(b) Using the state variable transformation, convert the
(1+1
controllable canonical form into Jordan canonical form, and find
out output for step input.
(6 marks)
(c) Find the state transition matrix (1) using the formula
(t)=e=L[(SIA)" for the following matrix
A-
(4 marks)
