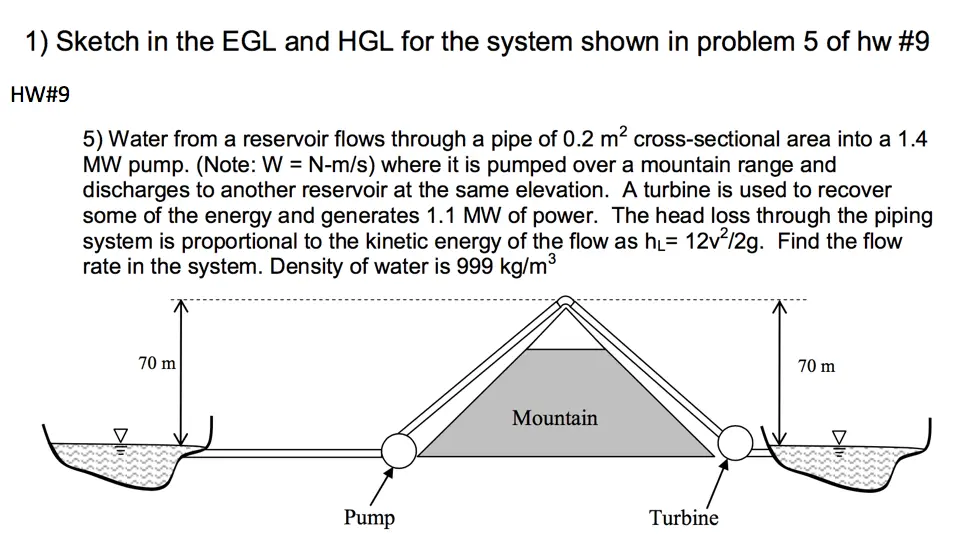

1) Sketch in the EGL and HGL for the system shown in problem 5 of hw #9 HW#9 5) Water from a reservoir flows through a pipe of 0.2 m² cross-sectional area into a 1.4 MW pump. (Note: W = N-m/s) where it is pumped over a mountain range and discharges to another reservoir at the same elevation. A turbine is used to recover some of the energy and generates 1.1 MW of power. The head loss through the piping system is proportional to the kinetic energy of the flow as h₁= 12v²/2g. Find the flow rate in the system. Density of water is 999 kg/m³ 70 m Pump Mountain Turbine 70 m
