السؤال

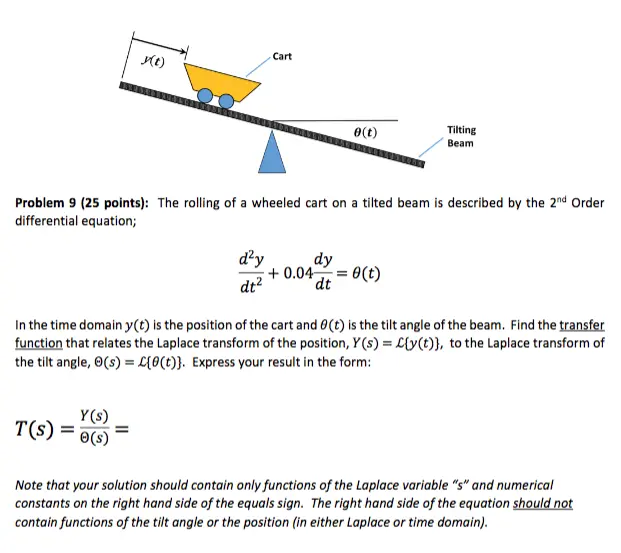

Transcribed Image Text:
Cart
y(t)
0(t)
Tilting
Beam
Problem 9 (25 points): The rolling of a wheeled cart on a tilted beam is described by the 2nd Order
differential equation;
d²y
dt²
dy
+0.04- = 0(t)
dt
In the time domain y(t) is the position of the cart and 0(t) is the tilt angle of the beam. Find the transfer
function that relates the Laplace transform of the position, Y(s) = {y(t)), to the Laplace transform of
the tilt angle, (s)[0(t)}. Express your result in the form:
T(s) =
Y(s)
e(s)
Note that your solution should contain only functions of the Laplace variable "s" and numerical
constants on the right hand side of the equals sign. The right hand side of the equation should not
contain functions of the tilt angle or the position (in either Laplace or time domain).
