السؤال
Transcribed Image Text:

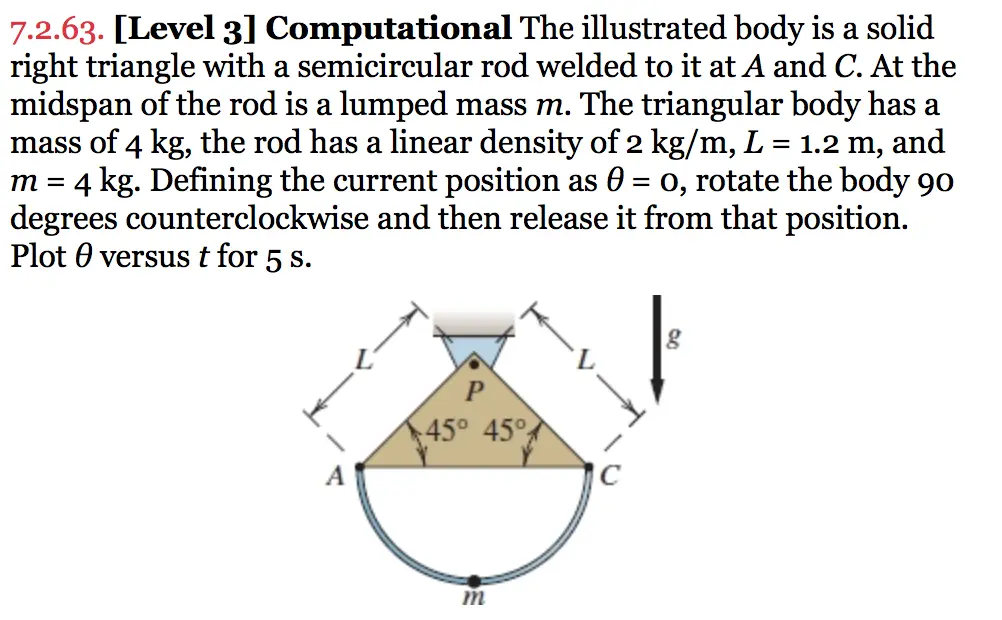

7.2.63. [Level 3] Computational The illustrated body is a solid
right triangle with a semicircular rod welded to it at A and C. At the
midspan of the rod is a lumped mass m. The triangular body has a
mass of 4 kg, the rod has a linear density of 2 kg/m, L = 1.2 m, and
m = 4 kg. Defining the current position as 0 = 0, rotate the body 90
degrees counterclockwise and then release it from that position.
Plot versus t for 5 s.
45° 45°
m
