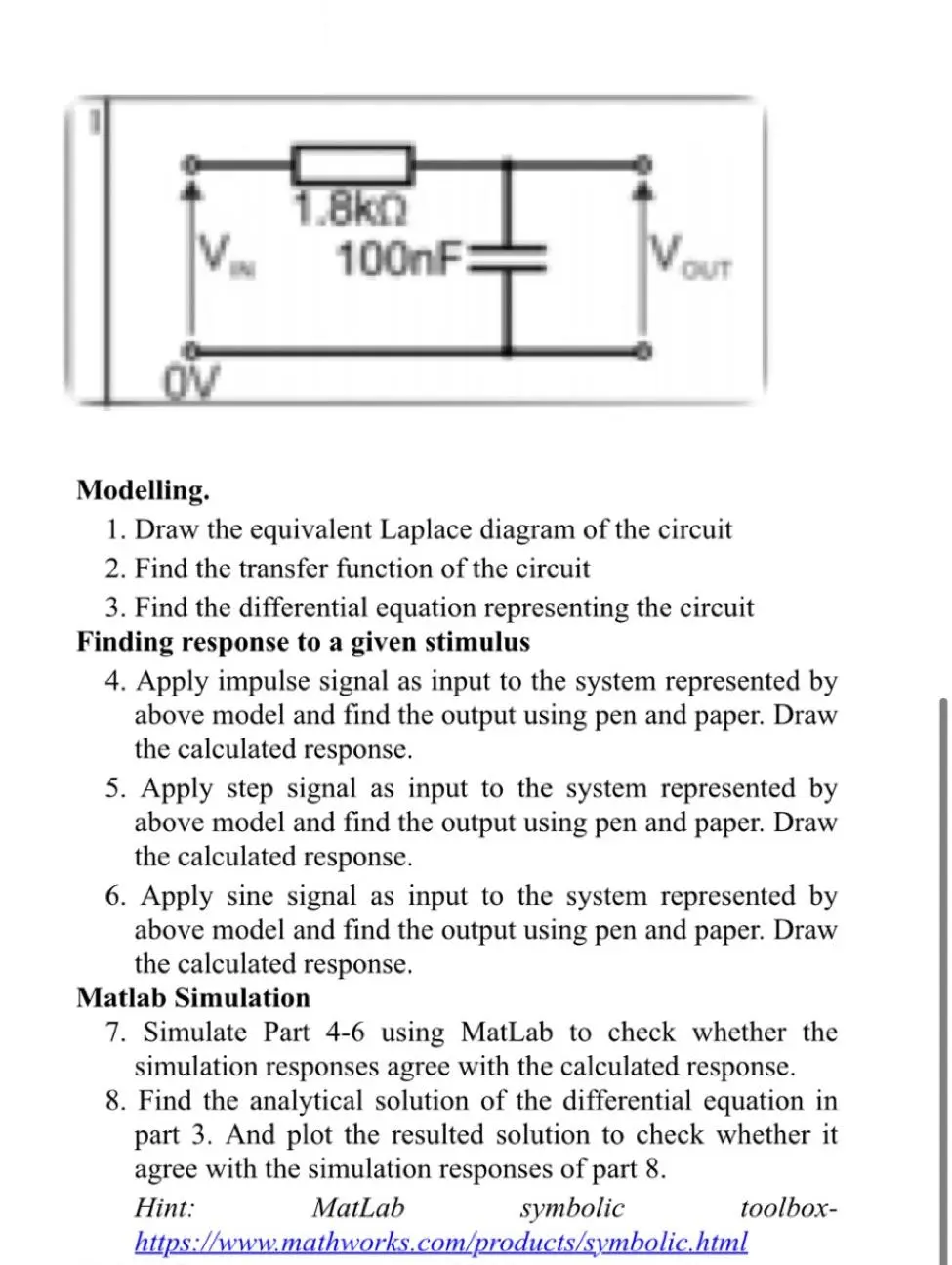

OV 1.8kQ 100nF OUT Modelling. 1. Draw the equivalent Laplace diagram of the circuit 2. Find the transfer function of the circuit 3. Find the differential equation representing the circuit Finding response to a given stimulus 4. Apply impulse signal as input to the system represented by above model and find the output using pen and paper. Draw the calculated response. 5. Apply step signal as input to the system represented by above model and find the output using pen and paper. Draw the calculated response. 6. Apply sine signal as input to the system represented by above model and find the output using pen and paper. Draw the calculated response. Matlab Simulation 7. Simulate Part 4-6 using MatLab to check whether the simulation responses agree with the calculated response. 8. Find the analytical solution of the differential equation in part 3. And plot the resulted solution to check whether it agree with the simulation responses of part 8. Hint: MatLab symbolic https://www.mathworks.com/products/symbolic.html toolbox-
