السؤال
Transcribed Image Text:

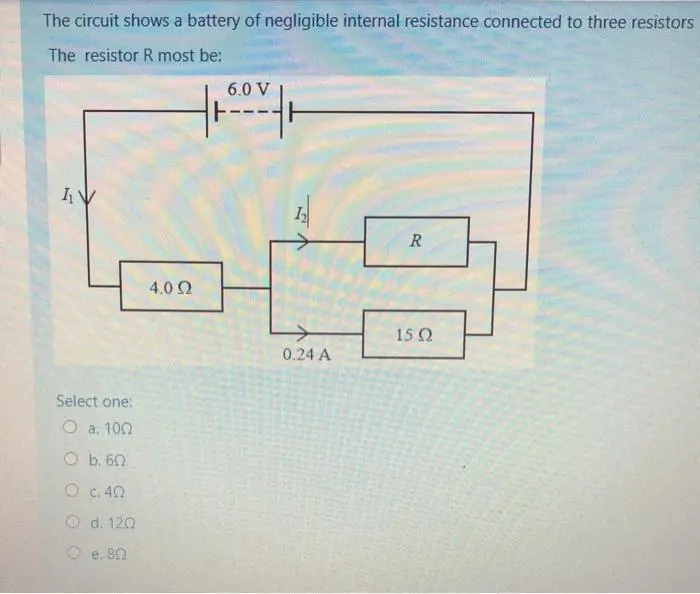

The circuit shows a battery of negligible internal resistance connected to three resistors
The resistor R most be:
IV
Select one:
O a. 100
O b. 60
O c. 40
Od. 120
e. 80
4.02
6.0 V
R
15 Ω
0.24 A
