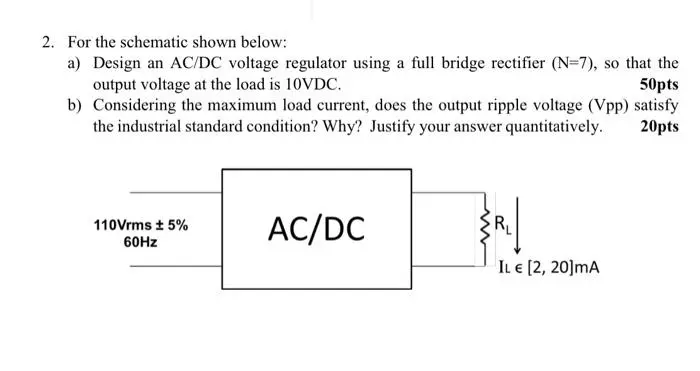

2. For the schematic shown below:
a) Design an AC/DC voltage regulator using a full bridge rectifier (N=7), so that the
output voltage at the load is 10VDC.
50pts
b) Considering the maximum load current, does the output ripple voltage (Vpp) satisfy
the industrial standard condition? Why? Justify your answer quantitatively.
20pts
