السؤال

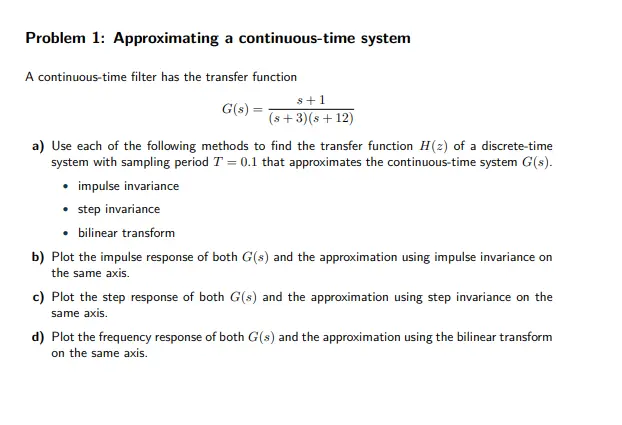

Transcribed Image Text:
Problem 1: Approximating a continuous-time system
A continuous-time filter has the transfer function
G(s) =
8+1
(s+3)(8+12)
a) Use each of the following methods to find the transfer function H(2) of a discrete-time
system with sampling period T = 0.1 that approximates the continuous-time system G(s).
•
impulse invariance
• step invariance
⚫ bilinear transform
b) Plot the impulse response of both G(s) and the approximation using impulse invariance on
the same axis.
c) Plot the step response of both G(s) and the approximation using step invariance on the
same axis.
d) Plot the frequency response of both G(s) and the approximation using the bilinear transform
on the same axis.
