السؤال

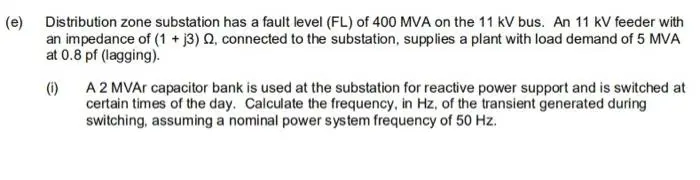

Transcribed Image Text:
(e) Distribution zone substation has a fault level (FL) of 400 MVA on the 11 kV bus. An 11 kV feeder with
an impedance of (1 + j3) Q2, connected to the substation, supplies a plant with load demand of 5 MVA
at 0.8 pf (lagging).
(i)
A 2 MVAr capacitor bank is used at the substation for reactive power support and is switched at
certain times of the day. Calculate the frequency, in Hz, of the transient generated during
switching, assuming a nominal power system frequency of 50 Hz.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
