السؤال

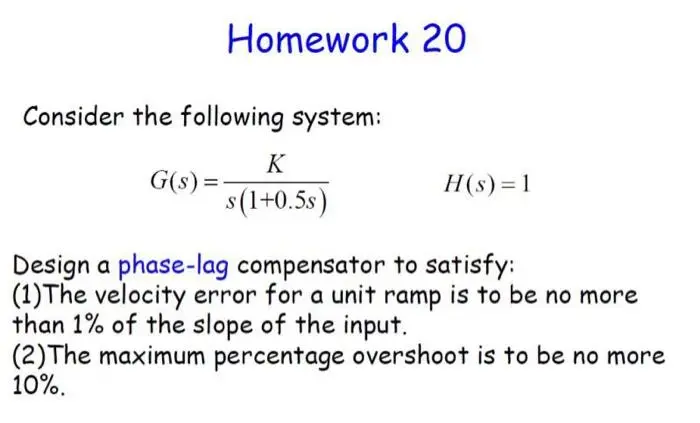

Transcribed Image Text:
Homework 20
Consider the following system:
K
G(s)=
s(1+0.5s)
H(s)=1
Design a phase-lag compensator to satisfy:
(1)The velocity error for a unit ramp is to be no more
than 1% of the slope of the input.
(2) The maximum percentage overshoot is to be no more
10%.
