السؤال

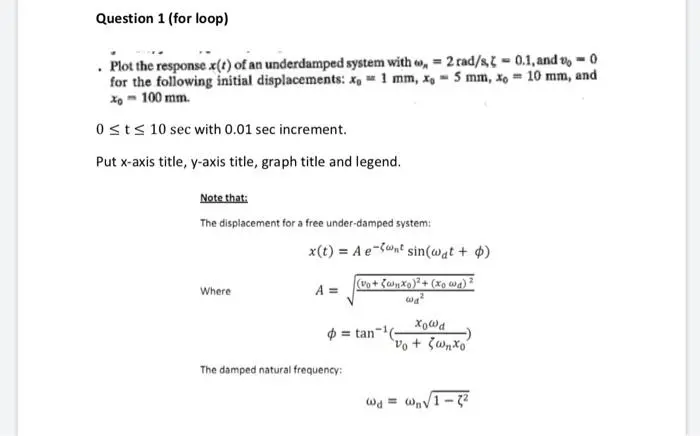

Transcribed Image Text:
Question 1 (for loop)
.
Plot the response x(t) of an underdamped system with e, 2 rad/s, -0.1, and -0
for the following initial displacements: xo 1 mm, x,5 mm, xo 10 mm, and
xo-100 mm.
0≤t≤ 10 sec with 0.01 sec increment.
Put x-axis title, y-axis title, graph title and legend.
Note that:
The displacement for a free under-damped system:
x(t) =Aent sin(wat + )
Where
A =
(vo+ {wnxo)² + (xowa)2
wa²
Xowd
tan (-
The damped natural frequency:
= √1-32
Question 2 (ode45)
Solve -+x=0 with x = 1 and 0 for x(t) and sketch the response.
a. Firstly, transform the equation of motion into 1st Order Differential
Equations. (This part can be handwriting or write it on a Word
document).
b. Using MATLAB, create a Function then create a Script to find x(t) and v(t)
for 0 t≤10 sec with 0.01 sec increment.
Page 1 of 2
c. Plot x(t).
d. Plot v(t) using a new figure.
e. Open a new figure, plot both x(t) and v(t). Put the legend of the graph.
f. Using subplot, plot x(t) and v(t). Add a title for each subplot.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
