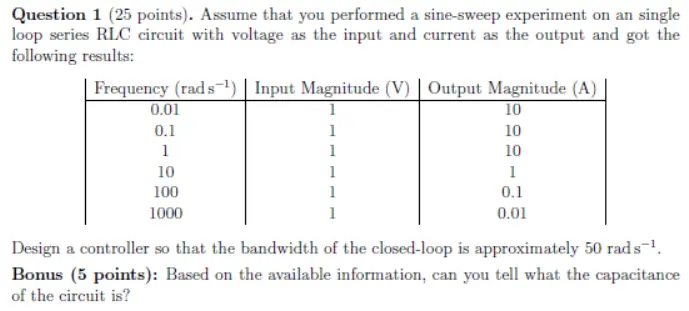

Question 1 (25 points). Assume that you performed a sine-sweep experiment on an single
loop series RLC circuit with voltage as the input and current as the output and got the
following results:
Frequency (rad s¹) | Input Magnitude (V) | Output Magnitude (A)
0.01
0.1
1
10
100
1000
1
1
1
1
1
10
10
10
1
0.1
0.01
Design a controller so that the bandwidth of the closed-loop is approximately 50 rads¹.
Bonus (5 points): Based on the available information, can you tell what the capacitance
of the circuit is?
