السؤال
Transcribed Image Text:
2.22 The voltage across the 16 2 resistor in the circuit in
Fig. P2.22 is 80 V, positive at the upper terminal.
PSPICE
MULTISIM
a) Find the power dissipated in each resistor.
b) Find the power supplied by the 125 V ideal volt-
age source.
c) Verify that the power supplied equals the total
power dissipated.

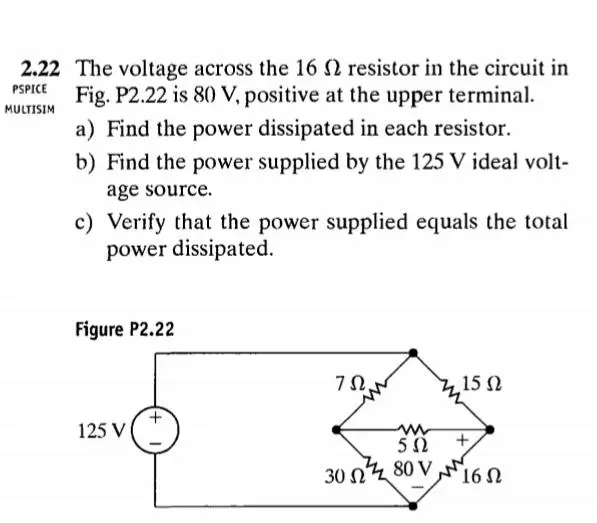

Figure P2.22
125 V
7525
4 15 Ω
w
50
+
Ω
30 380V 160
Ω
