السؤال

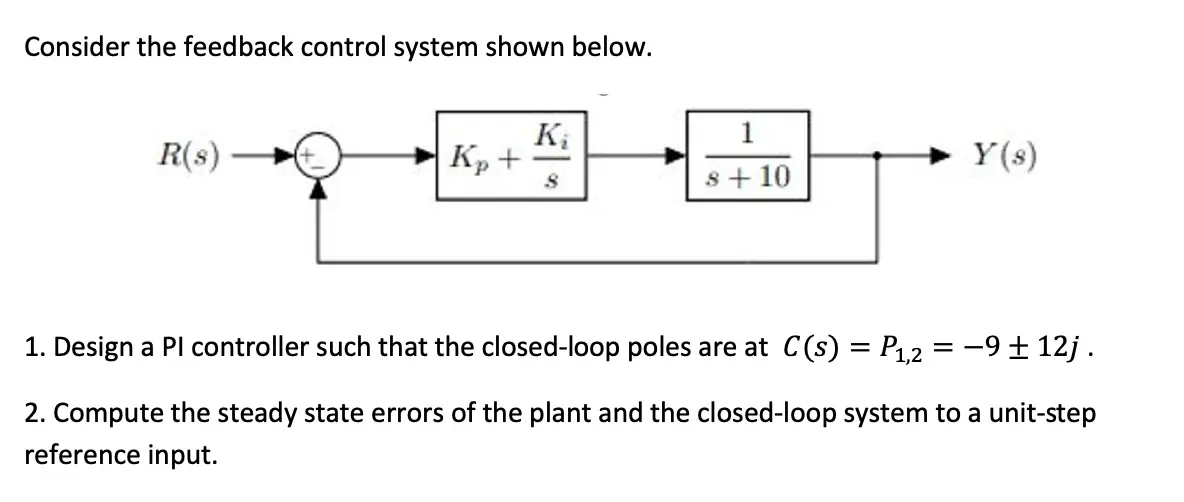

Transcribed Image Text:
Consider the feedback control system shown below.
R(s)
Ki
1
Kp +
Y(s)
S
8 +10
1. Design a PI controller such that the closed-loop poles are at C(s) = P1,2 = −9 ± 12j .
2. Compute the steady state errors of the plant and the closed-loop system to a unit-step
reference input.
