السؤال

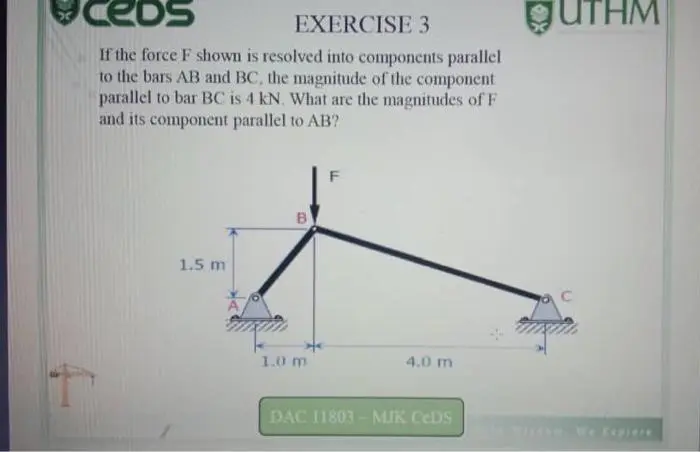

Transcribed Image Text:
CEDS
EXERCISE 3
If the force F shown is resolved into components parallel
to the bars AB and BC, the magnitude of the component
parallel to bar BC is 4 kN. What are the magnitudes of F
and its component parallel to AB?
1.5 m
B
1.0 m
4.0 m
UTHM
C
DAC 11803-MJK CCDS
We Expiere
