السؤال
Transcribed Image Text:

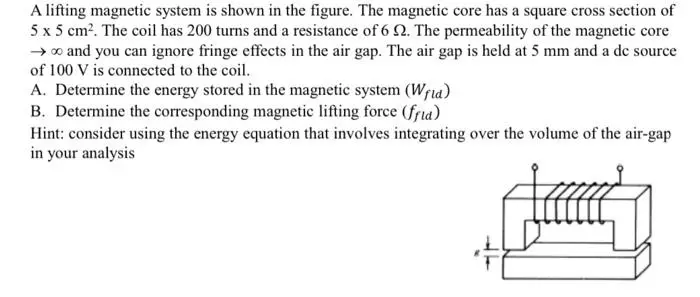

A lifting magnetic system is shown in the figure. The magnetic core has a square cross section of
5 x 5 cm². The coil has 200 turns and a resistance of 6 Q2. The permeability of the magnetic core
→ ∞ and you can ignore fringe effects in the air gap. The air gap is held at 5 mm and a de source
of 100 V is connected to the coil.
A. Determine the energy stored in the magnetic system (Wfta)
B. Determine the corresponding magnetic lifting force (ffia)
Hint: consider using the energy equation that involves integrating over the volume of the air-gap
in your analysis
