السؤال
Transcribed Image Text:

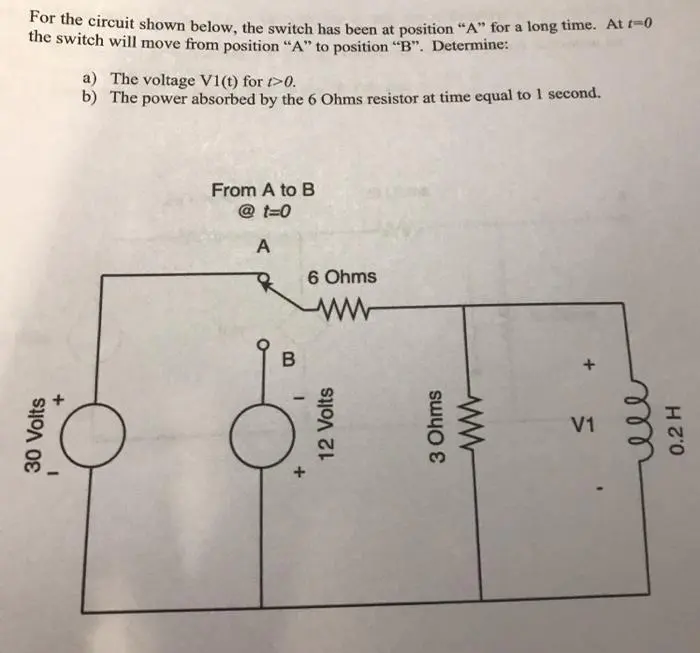

For the circuit shown below, the switch has been at position "A" for a long time. At 1-0
the switch will move from position "A" to position "B". Determine:
a) The voltage V1(t) for t>0.
b) The power absorbed by the 6 Ohms resistor at time equal to 1 second.
30 Volts
+
I
From A to B
@ t=0
A
6 Ohms
B
+
12 Volts
3 Ohms
ww
V1
еее
0.2 H
+
