السؤال

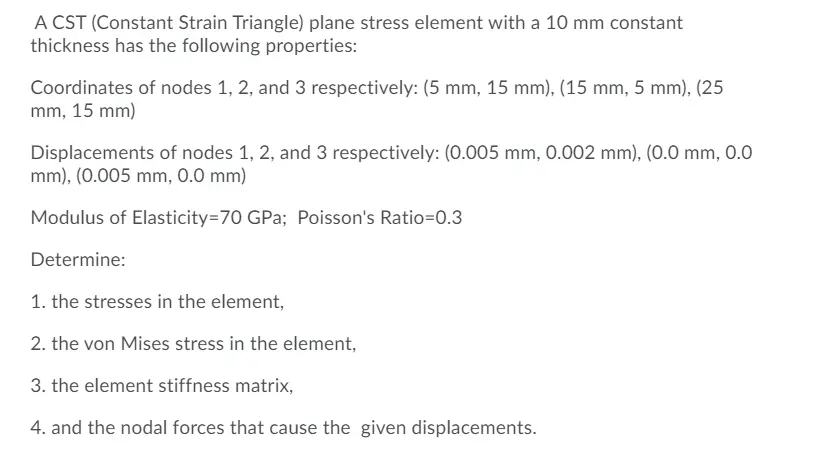

Transcribed Image Text:
A CST (Constant Strain Triangle) plane stress element with a 10 mm constant
thickness has the following properties:
Coordinates of nodes 1, 2, and 3 respectively: (5 mm, 15 mm), (15 mm, 5 mm), (25
mm, 15 mm)
Displacements of nodes 1, 2, and 3 respectively: (0.005 mm, 0.002 mm), (0.0 mm, 0.0
mm), (0.005 mm, 0.0 mm)
Modulus of Elasticity=70 GPa; Poisson's Ratio=0.3
Determine:
1. the stresses in the element,
2. the von Mises stress in the element,
3. the element stiffness matrix,
4. and the nodal forces that cause the given displacements.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
