السؤال
Transcribed Image Text:

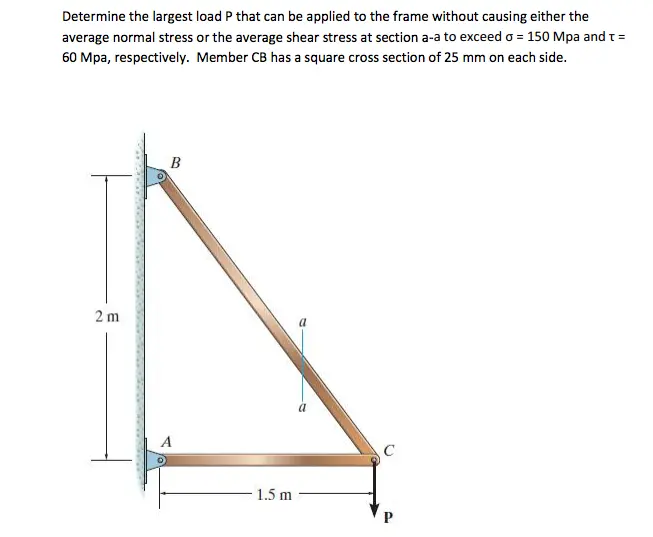

Determine the largest load P that can be applied to the frame without causing either the
average normal stress or the average shear stress at section a-a to exceed σ = 150 Mpa and t =
60 Mpa, respectively. Member CB has a square cross section of 25 mm on each side.
2 m
B
D
C
1.5 m
P
