السؤال
Transcribed Image Text:

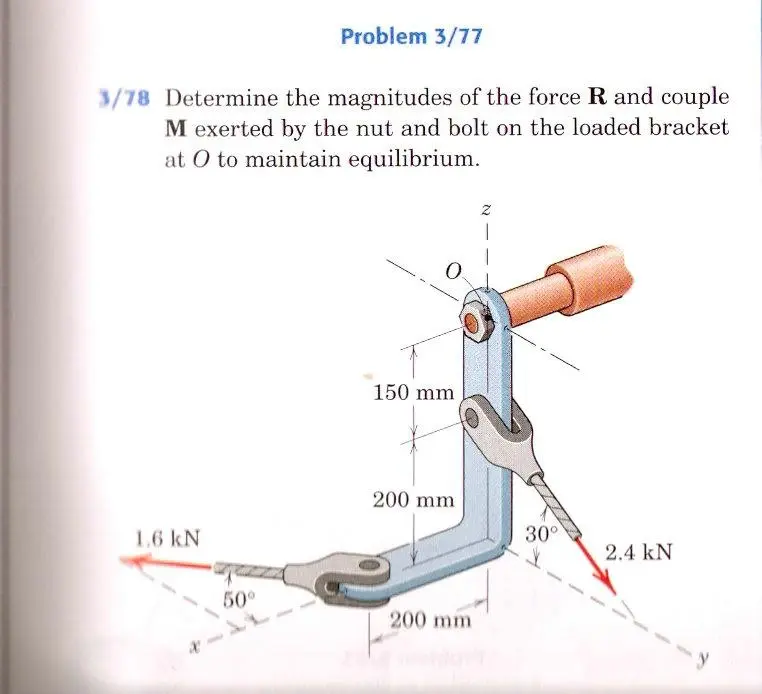

Problem 3/77
3/78 Determine the magnitudes of the force R and couple
M exerted by the nut and bolt on the loaded bracket
at O to maintain equilibrium.
1.6 kN
150 mm
200 mm
50°
200 mm
Z
30°
2.4 kN
y
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
