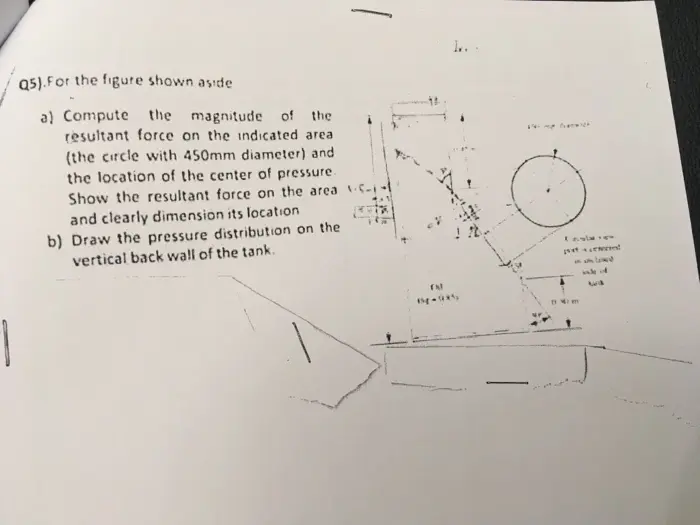

1 Q5).For the figure shown aside a) Compute the magnitude of the resultant force on the indicated area (the circle with 450mm diameter) and the location of the center of pressure. Show the resultant force on the area c and clearly dimension its location. b) Draw the pressure distribution on the vertical back wall of the tank. TM 25925 I... patr 77 w3 1.5- diameter 0-985 Cincalar ve port centeres 590 in inclined sade of tank = Question 4.19: Compute the magnitude of the resultant force on the indicated area and the location of center of pressure. Ans: FR 1.094 kN, Lp = 966 mm from free surface measured along the face of the area. 1.5 m Oil 0.45 m 450-mm diameter FR=86) A Circular view port is centered in inclined side of tank. (sg=0.85) 0.30 m 30°
