Transcribed Image Text:

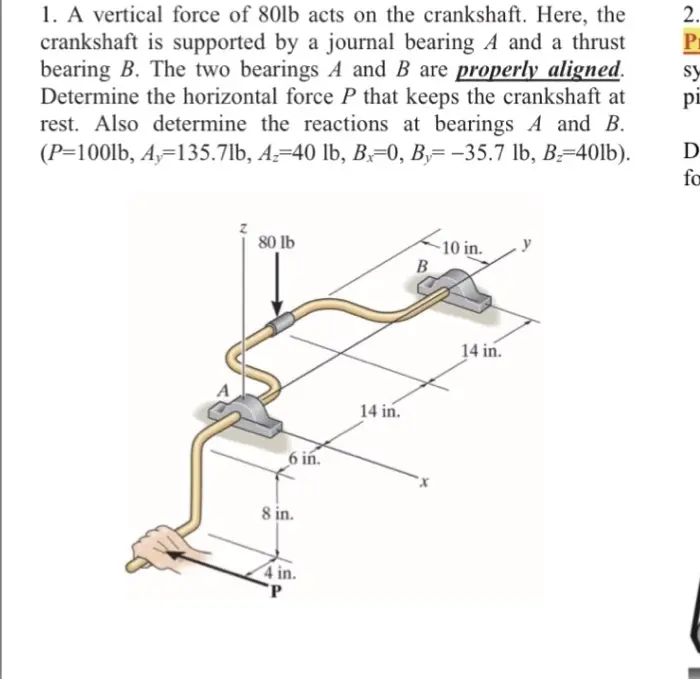

1. A vertical force of 80lb acts on the crankshaft. Here, the
crankshaft is supported by a journal bearing A and a thrust
bearing B. The two bearings A and B are properly aligned.
Determine the horizontal force P that keeps the crankshaft at
rest. Also determine the reactions at bearings A and B.
(P-100lb, A, 135.7lb, Az-40 lb, B=0, By=-35.7 lb, B=40lb).
2.
P
sy
p₁
D
fo
80 lb
-10 in.
B
8 in.
14 in.
6 in.
4 in.
14 in.
