السؤال
Transcribed Image Text:

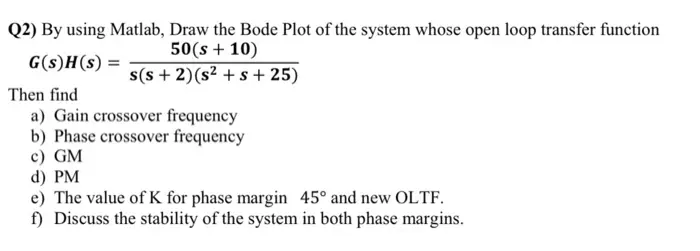

Q2) By using Matlab, Draw the Bode Plot of the system whose open loop transfer function
50(s + 10)
s(s+2)(s²+s+25)
G(s)H(s) =
Then find
a) Gain crossover frequency
b) Phase crossover frequency
c) GM
d) PM
e) The value of K for phase margin 45° and new OLTF.
f) Discuss the stability of the system in both phase margins.
