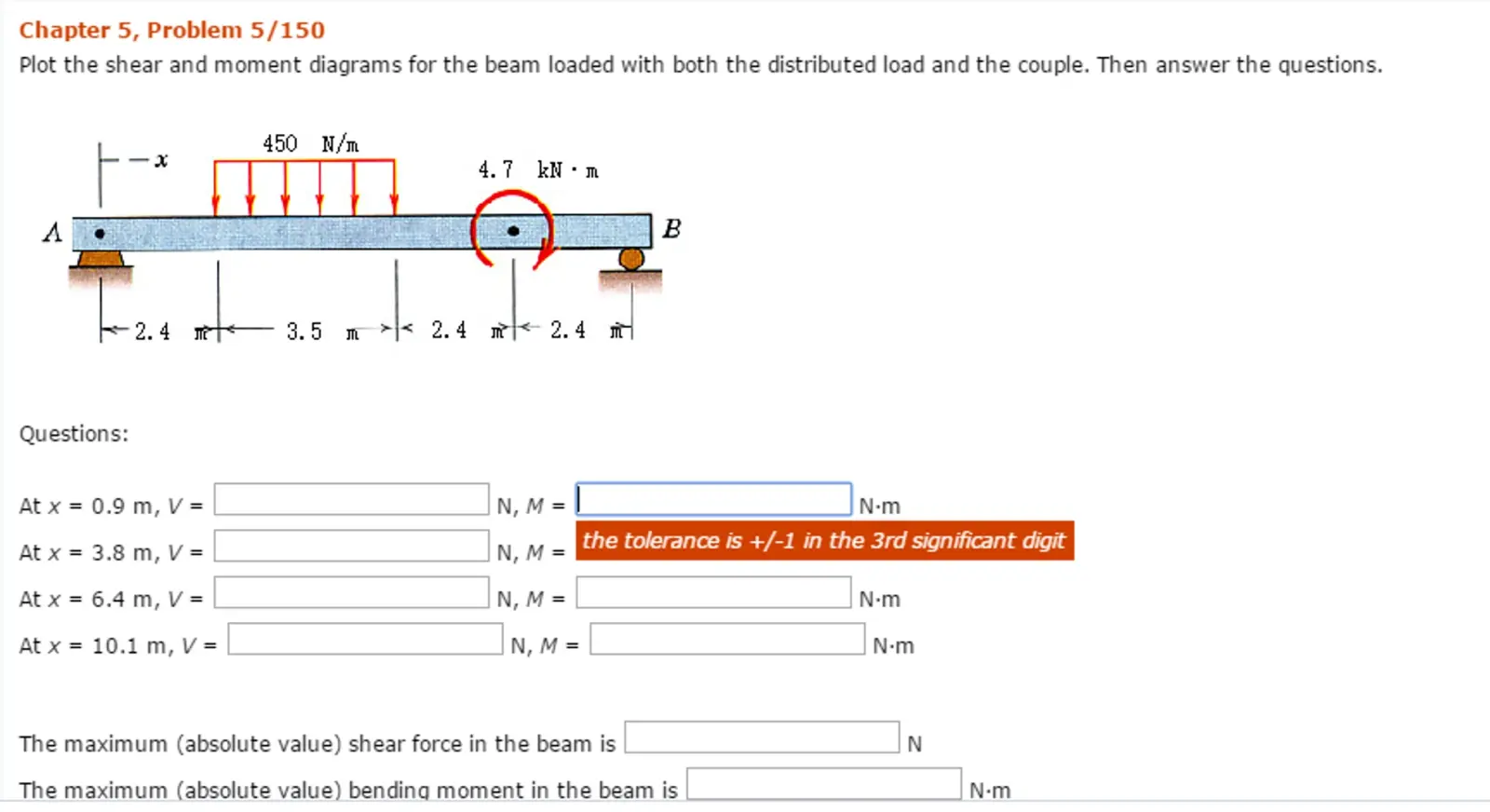

Chapter 5, Problem 5/150 Plot the shear and moment diagrams for the beam loaded with both the distributed load and the couple. Then answer the questions. A Questions: 450 N/m x 4.7 kN·m B 2.4 m 3.5 m 2.4 2.4 m At x = 0.9 m, V = N, M = N.m At x = 3.8 m, V = N, M = the tolerance is +/-1 in the 3rd significant digit At x = 6.4 m, V = At x = 10.1 m, V = N, M = |N, = N, M = N.m N-m The maximum (absolute value) shear force in the beam is The maximum (absolute value) bending moment in the beam is N N.m
