السؤال

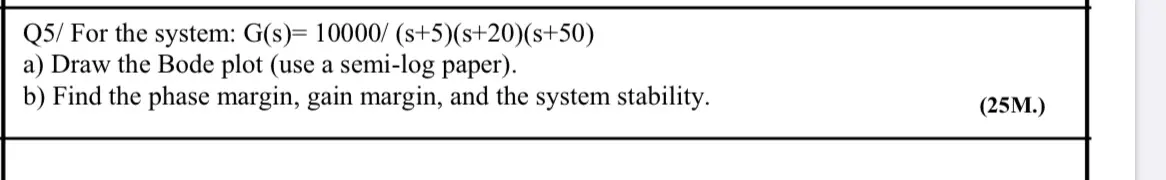

Transcribed Image Text:
Q5/ For the system: G(s)= 10000/ (s+5)(s+20)(s+50)
a) Draw the Bode plot (use a semi-log paper).
b) Find the phase margin, gain margin, and the system stability.
(25M.)
