السؤال

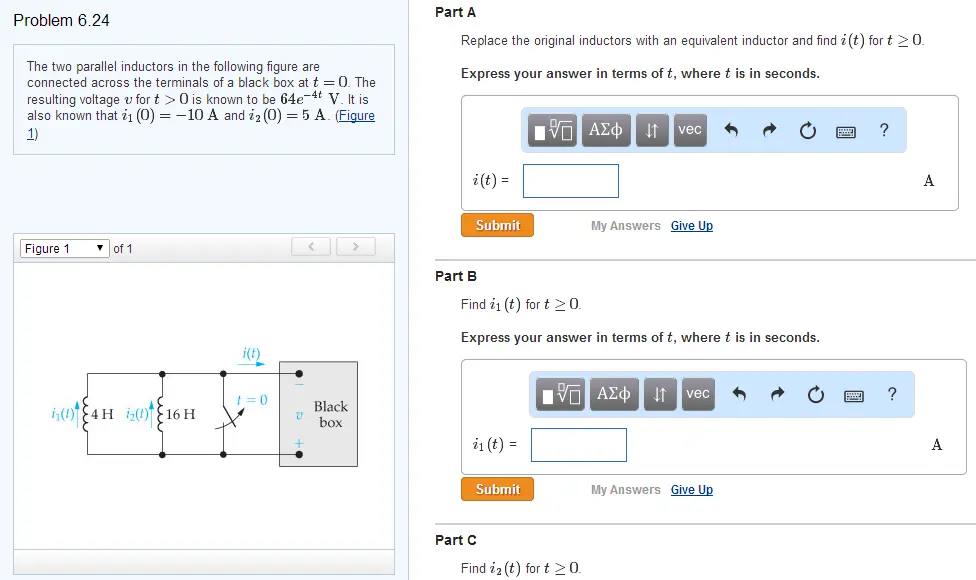

Transcribed Image Text:
Problem 6.24
The two parallel inductors in the following figure are
connected across the terminals of a black box at t = 0. The
resulting voltage for t > 0 is known to be 64e-4t V. It is
also known that 1 (0) = -10 A and 2 (0) = 5 A. (Figure
1)
Part A
Replace the original inductors with an equivalent inductor and find i(t) for t≥0.
Express your answer in terms of t, where t is in seconds.
?
Figure 1
▼of 1
<
>
i(t)
1 ΑΣΦ Η vec
i(t) =
Submit
My Answers Give Up
Part B
Find 1 (t) for t≥ 0.
Express your answer in terms of t, where t is in seconds.
A
(14H ☐
ΜΕ ΑΣΦ
It vec
Black
(!) 4 H iz(!) 16 H
ひ
box
i1 (t) =
A
Submit
My Answers Give Up
Part C
Find i₂ (t) for t≥ 0.
Part D
How much energy is delivered to the black box in the time interval 0 < t < ∞o?
Express your answer with the appropriate units.
μ
Wdelivered
Value
Units
Submit
My Answers Give Up
Part E
How much energy was initially stored in the parallel inductors?
Express your answer with the appropriate units.
με
?
Winital
Value
Units
Submit
My Answers Give Up
Part F
How much energy is trapped in the ideal inductors?
Express your answer with the appropriate units.
?
