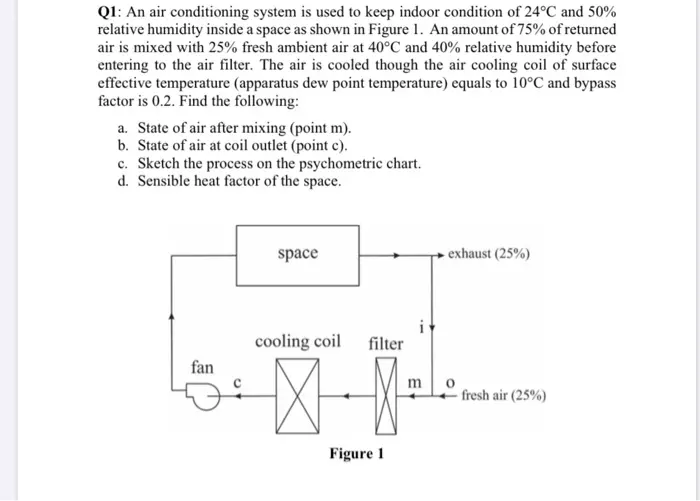

Q1: An air conditioning system is used to keep indoor condition of 24°C and 50% relative humidity inside a space as shown in Figure 1. An amount of 75% of returned air is mixed with 25% fresh ambient air at 40°C and 40% relative humidity before entering to the air filter. The air is cooled though the air cooling coil of surface effective temperature (apparatus dew point temperature) equals to 10°C and bypass factor is 0.2. Find the following: a. State of air after mixing (point m). b. State of air at coil outlet (point c). c. Sketch the process on the psychometric chart. d. Sensible heat factor of the space. space i exhaust (25%) cooling coil filter fan ✓ ✓ fresh air (25%) Figure 1 Q1: An air conditioning system is used to keep indoor condition of 24°C and 50% relative humidity inside a space as shown in Figure 1. An amount of 75% of returned air is mixed with 25% fresh ambient air at 40°C and 40% relative humidity before entering to the air filter. The air is cooled though the air cooling coil of surface effective temperature (apparatus dew point temperature) equals to 10°C and bypass factor is 0.2. Find the following: a. State of air after mixing (point m). b. State of air at coil outlet (point c). c. Sketch the process on the psychometric chart. d. Sensible heat factor of the space. space i exhaust (25%) cooling coil filter fan ✓ ✓ fresh air (25%) Figure 1
