السؤال
Transcribed Image Text:

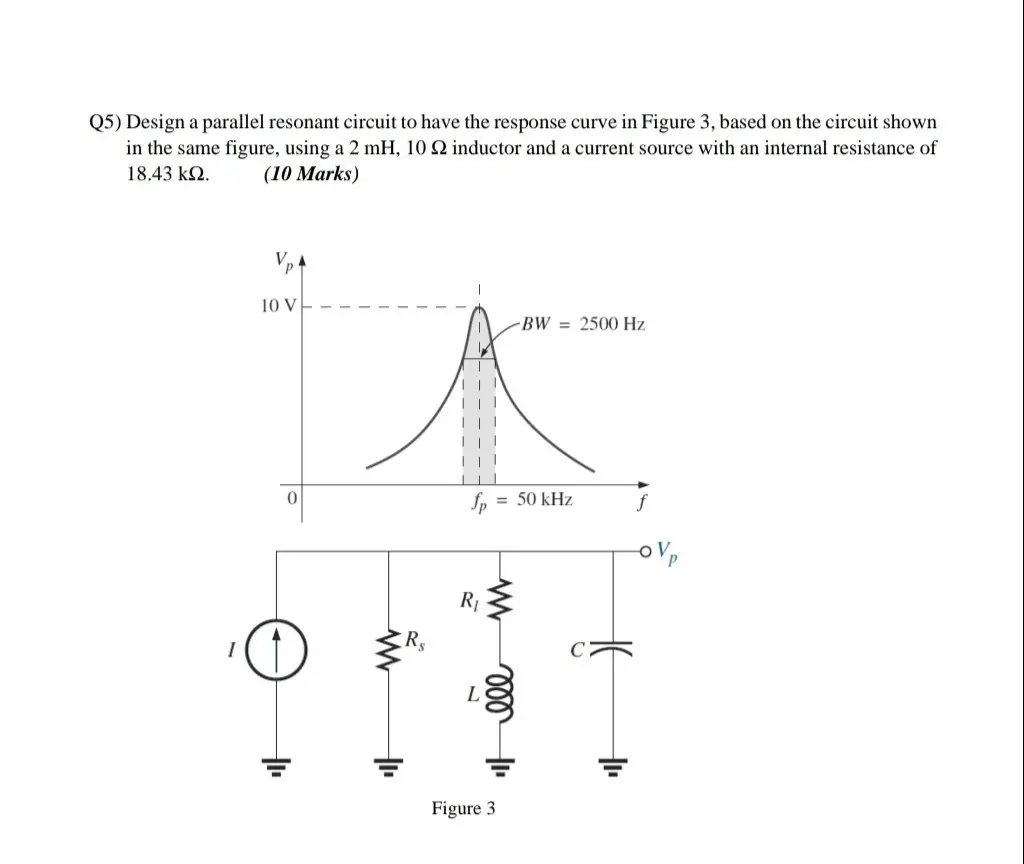

Q5) Design a parallel resonant circuit to have the response curve in Figure 3, based on the circuit shown
in the same figure, using a 2 mH, 102 inductor and a current source with an internal resistance of
18.43 КО.
(10 Marks)
Vp
10 V
0
RS
Figure 3
-BW = 2500 Hz
= 50 kHz
